Standard regulator fitting on one end with the other fitting a standard low pressure hose
Lets your regulator fit properly into your mouth with no tugging while diving
This part is NITROX READY right out of the packaging!
This is a one of the better made elbows we have seen! Order one and if your not happy with it for any reason we will take it back! These same ones go for up to $50.00 we have spotted from other shops. This is a heavy duty and very durable unit...
Tired of your second-stage hose tugging at your mouth when you turn your head? Using a swivel adapter can eliminate this annoying problem. Your second-stage hose will have a lot more maneuverability when attached to a swivel.

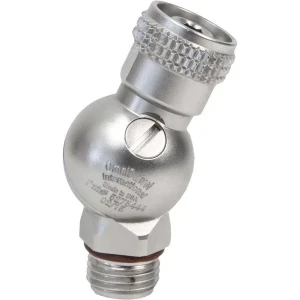

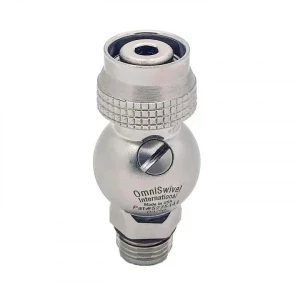

The Standard Omni Swivel adapter is a 360°-degree rotating adapter that makes hose connections more comfortable. By allowing your low-pressure hose to swivel makes for a comfortable connection from your tank.
Whats new is on the main swivel we added an o-ring to keep dirt out and allows the swivel to keep moving freely
Also new is side interlocking feature now makes it impossible for the swivel to come apart while underwater!
Even just turning your head becomes a more simplistic task. You can also say goodbye to jaw fatigue because your constant struggle with hose tugs ends with the Omni Swivel.
It connects a standard low-pressure 9/16 -18 threaded regulator hose to a standard 9/16 -18 threaded 2nd stage.
Easy to install and intended for low pressure use only Below 200 psi (13.8 bars). Swivel measures (L x O-Dia.) 3" x 1" (7.6cm x 2.54cm), comes factory equipped with Viton O-rings, so it's made with 02 compatible materials.
Omni Swivel Standard Features
Omni Swivel Standard
Increase Comfort and Reduce Jaw Fatigue
Reduces "Pulling Feeling"
Rotating Swivel Action
360°-Degree Rotating Adapter
Installs to a standard Second-Stage-End of Regulator Hose

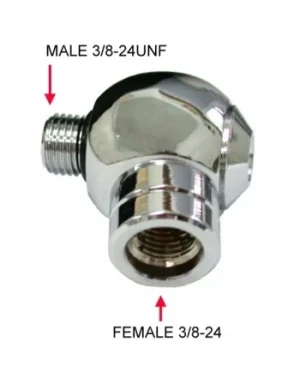

This goes into your low pressure 3/8-24 thread first stage port
Removes the tight bends on your hoses from your first stage! This keeps your low pressure hoses from being replaced so often because of the bend near the crimped area
Allows you to connect your low pressure hose for easy rotation

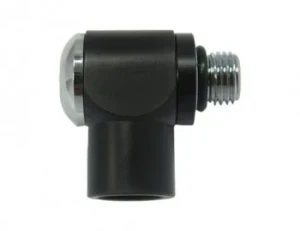

Plated black for the pro tech look and added outside protection of your adapter!
This goes into your low pressure 3/8-24 thread first stage port
Removes the tight bends on your hoses from your first stage! This keeps your low pressure hoses from being replaced so often because of the bend near the crimped area
Allows you to connect your low pressure hose for easy rotation
Our standard outside plating keeps your adapter looking great and also working fine!
Our one way check valve uses a 1lb check valve inside our adapter which allows the gas only to flow one way which we have marked! This would allow a diver to switch underwater with no water inside your hoses!!
The Bc connection end is a Seaquest type!
The other end uses a 3/8-24 male end to allow you to connect to low pressure hoses!
The check valve allows the air "gas" to flow only one way! The check valve is marked with the direction of your gas flow to give you a quick check before testing your system out!
Solid electro plated finish makes this adapter very durable in salt or fresh water use and for long life!
Our check valve is an awesome adapter for off board gas connections for rebreathers!

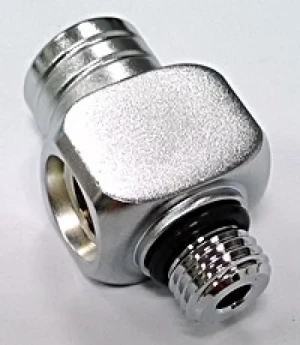

Lookin for a 2 to 1 high pressure rotating fitting well Piranha now has these! When you're looking for the most unique and largest selection of adapters for your diving needs Piranha has you covered! If you are looking for an adapter and can't find it? Send us an email at piranhadivemfg@yahoo.com and we will let you know if we have it for you
Lookin for a 2 to 1 low pressure fitting well Piranha now has these! When you're looking for the most unique and largest selection of adapters for your diving needs Piranha has you covered! If you are looking for an adapter and can't find it? Send us an email at piranhadivemfg@yahoo.com and we will let you know if we have it for you
Has male 9/16 threads to connect your low pressure hoses too
Uses a SeaQuest type female fitting with a knurled end to hold your LH-A adapters use the Seaquest type fitting or Seaquest fittings in place
NOTE: If you have the locking ring model::::Uses a rotating ring to hold the small adapter locked in until you move the ring into the release depression on the ring which allows you to release the two from being connected!
NOTE: You are purchasing a kit which comes with both fitting!
This is also used on the Kiss rebreather upgrade
More Details:
Female QD has lock built into sleeve. NOTE: If you are using the locking ring model!
Once connected, rotate the sleeve counter-clockwise 90 degrees to engage the lock.
Solid Brass Construction Made with 02 compatible materials
Female QD: 9/16"-18 Male (Connects to a standard regulator hose) Male QD: 9/16"-18 Female (Connects to a standard regulator fitting or all OmniSwivel's)
NOTE: Can be used with OTS Guardian Full Face Masks and OTS Stealth FFMs
This allows you many options when building your kits
Can be used with a Regulator to disconnect
This fitting works with ANY STANDARD Bc connection
Use for a quick connection on the hose end
Multi use connection
Size: Female thread size 9/16-18
Rebreather Info
Use our LHA Quick Disconnect male to work with a 9/16"-18 Female fitting such as our AB-04 or AH-202 fittings located in the rebreather hardware section!
Connections for BOVs or OC 2nd stage regulators
This connector is NOT compatible with CEJN fittings
This fitting works with Apeks/Aqualung/SeaQuest and Zeagle Bc connection
Use for a quick connection on the hose end or your regulator make threaded end!
Multi use connection
Size: Female thread size 9/16-18
Rebreather Info
Use our LHA Quick Disconnect male to work with a 9/16"-18 Female fitting such as our AB-04 or AH-202 fittings located in the rebreather hardware section!
Connections for BOVs or OC 2nd stage regulators
This connector is NOT compatible with CEJN fittings

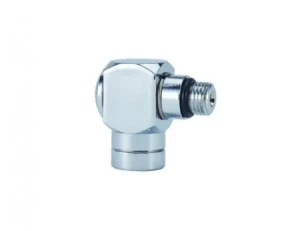

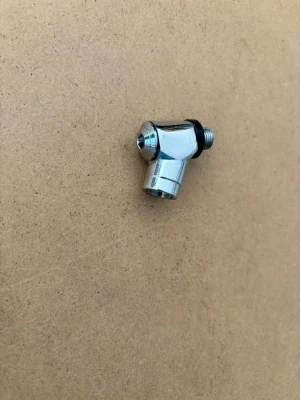

Our low pressure 3/8-24 female thread and is the upward angled for your hose to be routed and will rotate 360 degrees
The other 3/8-24 male part uses a 5mm allen head socket to tighten this part to your first stage which allows this adpater to rotate 360
Removes the tight bends on your hoses from your first stage! This keeps your low pressure hoses from being replaced so often because of the bend near the crimped area
Allows you to connect your low pressure hose for easy rotation
Our standard outside plating keeps your adapter looking great and also working fine!
3/8-24 female end can either screw into your low pressure hose male end fitting or the first stage on a low pressure port or any other threaded area using this thread size
The other end "9/16/18 male end will accept low pressure hoses or other threaded areas using this thread size
You can connect 2 low pressure hoses together with this adapter!
Perfect little step off your first stage for clearance issues!
We use a viton o-ring on both ends of this adapter!
This is made from solid brass and than electro-plated to give you a good looking adapter and very durable!

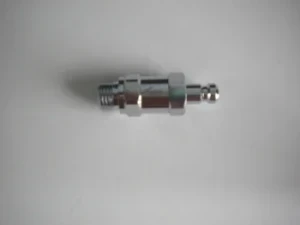

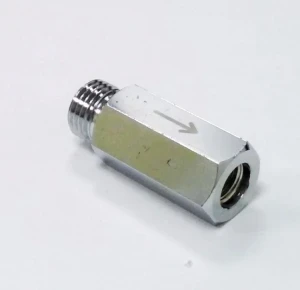

Our one way check valve uses a 1lb check valve inside our adapter which allows the gas only to flow one way which we have marked! This would allow a diver to switch underwater with no water inside your hoses!!
The Bc connection end is a Seaquest type!
The other end uses a 9/16-18 male end to allow you to connect to low pressure hoses!
The check valve allows the air "gas" to flow only one way! The check valve is marked with the direction of your gas flow to give you a quick check before testing your system out!
Solid electro plated finish makes this adapter very durable in salt or fresh water use and for long life!
Our check valve is an awesome adapter for off board gas connections for rebreathers!

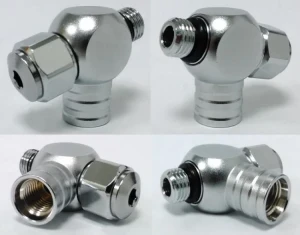

This special low pressure adapter has the following ports
1 Female 9/16 hose fitting allows you to run your low pressure hose to
1 Male 9/16 hose fitting Can connect to 2nd stage
1 3/8 Female fitting on the top side to connect a low pressure hose or choose to add our low pressure indictator adapter you can purchase below! Our on/off adapter uses 2 LR44 batteries that you need to add for the indicator to work. We include 2 batteries with your order if you order the indicator in our drop down
You can also just use a low pressure port plug with a 3/8 thread to seal the one port until your ready to use it

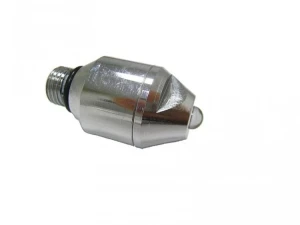

This special air flow adapter can be used where you have a female 1/4-NPT port to check you have air flow moving through your air lines works well on adapter with several ports and you are not using one
Also can work with our
Special layout Low Pressure Adapter
Specs on this air flow indicator
ON/OFF Indicator - 1st Stage W/O BATTERY BURN TIME: 30 HRS UNDER WATER: 50METER WORKING PRESSURE: 150 PSI MAX
BATTERY SELECTION: LR44 X 2.... Does not come with this battery
Our AD-51 adapter below has a 9/16 female end with the other side a male 9/16 threaded end and can use this indicator

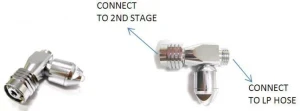

ON/OFF Low Pressure Air Flow Indicator - 2nd Stage.. Know when you have your air is turned on with flow with our light indicator lighting up! Place this adapter anywhere inline on your low pressure hoses to ensure you have air flow.

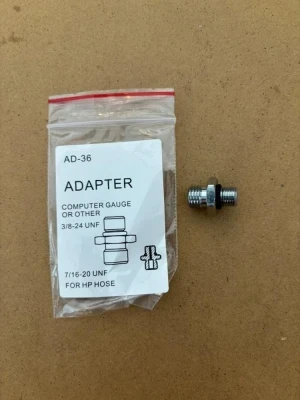

You can use this adapter to connect your computer depending on your design plus you want to your first stage plus many other uses
On one end you have a 7/16-20 end we had a small high pressure hole made so you do not need a spool to use with this fitting and the other end is a 3/8-24 male threaded fitting!!
This adapter uses a buna o-ring but you can always switch after using it for a while with a viton if you need too

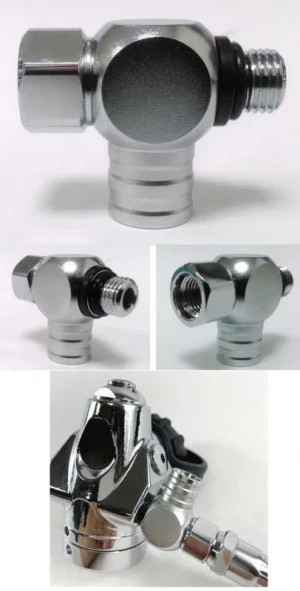

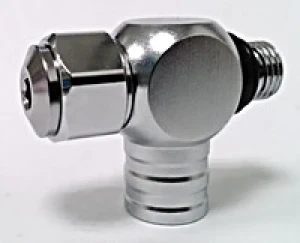

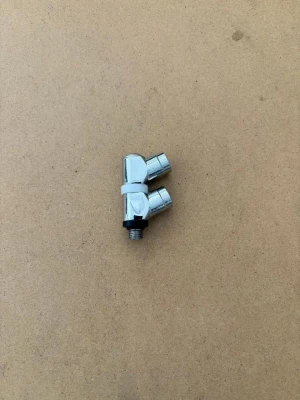

Our dual 3/8-24 female low pressure ports are both angled upward and rotate 360 so you have them move where you need your hoses to be routed
The other 3/8-24 male part uses a 5mm allen head socket to tighten this piece to your first stage.
Use a 5mm allen head wrench to tight this adapter onto your first stage!
Removes the tight bends on your hoses from your first stage! This keeps your low pressure hoses from being replaced so often because of the bend near the crimped area
Allows you to connect your low pressure hose for easy rotation
Our standard outside plating keeps your adapter looking great and also working fine!

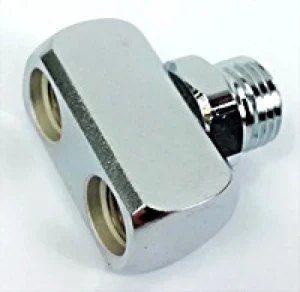

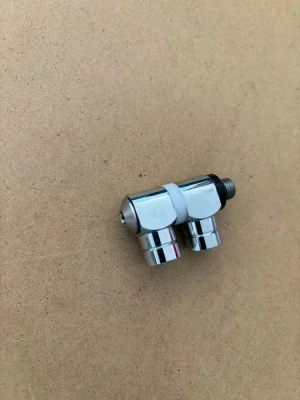

Our dual 3/8-24 female low pressure ports are both a straight low pressure hose outlet and rotates 360 so you have them move where you need your hoses to be routed and moving freely
The other 3/8-24 male part uses a 5mm allen head socket to tighten this piece to your first stage.
Removes the tight bends on your hoses from your first stage! This keeps your low pressure hoses from being replaced so often because of the bend near the crimped area
Use a 5mm allen head wrench to tight this adapter onto your first stage!
Allows you to connect your low pressure hose for easy rotation
Our standard outside plating keeps your adapter looking great and also working fine!

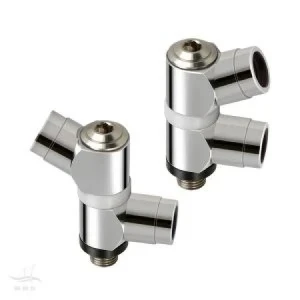

Our dual 3/8-24 female low pressure ports are one being angled upward at the top end of the adapter and the other port coming out straight from the adapter and both ports rotate 360 so you have them move where you need your hoses to be routed
The other 3/8-24 male part uses a 5mm allen head socket to tighten this piece to your first stage.
Use a 5mm allen head wrench to tight this adapter onto your first stage!
Removes the tight bends on your hoses from your first stage! This keeps your low pressure hoses from being replaced so often because of the bend near the crimped area
Allows you to connect your low pressure hose for easy rotation
Our standard outside plating keeps your adapter looking great and also working fine!

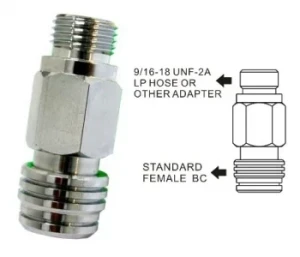

With a 3/8-24 female on the one side to connect to any male 3/8-24 fitting there are plenty of uses and the other end we have a standard female BC fitting you can connect with
With a 3/8-24 female on the one side to connect to any male 3/8-24 fitting there are plenty of uses and the other end we have a standard male BC fitting you can connect with
With some many divers now building their diving sets with more configurations that ever before we keep adding new adapters to allow you for more ways to build your diving rig
Our nestest adapter give you a a low pressure stand off of 7/8" inches long
We also use a viton o-ring so this is good for air or mix gasses
To screw down the 3/8 male end you will need a 4mm allen wrench which you go down the adapter and tight down! This allows this adapter to swivel 360 degrees

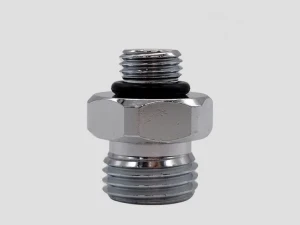

Has a male 9/16-18 threaded end on one side and the other has a 3/8-24 male threaded end
Piranha's Price: $6.99
Hose Adapters
Split a port or turn a hose without changing your first stage. We stock low pressure 1 to 2 way adapters, 3/8-24 male to two 3/8-24 female way adapters, 1 to 2 port swivel adapters, high pressure 1 to 3 way adapters, and 90 degree nitrox ready elbows.
