Our one way check valve uses a 1lb check valve inside our adapter which allows the gas only to flow one way which we have marked! This would allow a diver to switch underwater with no water inside your hoses!!
The Bc connection end is a Seaquest type!
The other end uses a 3/8-24 male end to allow you to connect to low pressure hoses!
The check valve allows the air "gas" to flow only one way! The check valve is marked with the direction of your gas flow to give you a quick check before testing your system out!
Solid electro plated finish makes this adapter very durable in salt or fresh water use and for long life!
Our check valve is an awesome adapter for off board gas connections for rebreathers!

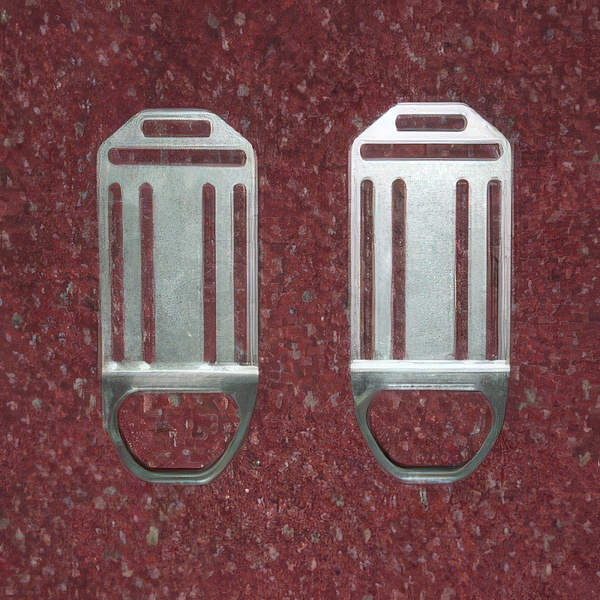

This new D-Ring we now have added a 3rd option for clipping to/from! We added a low profile D-ring at the bottom to allow for even more flexibility to your rig!!
You can use this has a triple under the counterlung d-ring or slide it on your 2 inch crotch strap towards the rear and now you have a place to attach spools, reels or even Smb / liftbags and even more with the 3rd low profile rear D-ring!!!
Fits 2 inch webbing... measures loop 2 inch "ID" w/ 1.5 inch long "ID"
You can use this has a double under the counterlung d-ring or slide it on your 2 inch crotch strap towards the rear and now you have a place to attach spools, reels or even Smb / liftbags!
Fits 2 inch webbing... measures loop 2 inch "ID" w/ 1.5 inch long "ID"
This fitting works with Apeks/Aqualung/SeaQuest and Zeagle Bc connection
Use for a quick connection on the hose end or your regulator make threaded end!
Multi use connection
Size: Female thread size 9/16-18
Rebreather Info
Use our LHA Quick Disconnect male to work with a 9/16"-18 Female fitting such as our AB-04 or AH-202 fittings located in the rebreather hardware section!
Connections for BOVs or OC 2nd stage regulators
This connector is NOT compatible with CEJN fittings
Our kit includes one locking quick disconnect AB-04 connector and we marry that with our LH-A regulator side connection 9/16 fitting but you MUST select which fitting you wish with your kit! Choose down below!!
NOTE: You can now select either fitting from our drop down box below to complete your set-up
Detailed Information
Quick disconnect for BOV or second stage regulator
Also check out our newest adapter our Deluxe LH-A adapter! Its costs very little to upgrade to our best adapter yet!
Female 9/16 thread on our LH-A connector NOTE: The nipple to screw on the BOV or second stage
Male 9/16 thread on locking AB-04 Quick Disconnect locking slider to screw on standard low pressure regulator hoses
Our AB-04 quick disconnet locking slider is sealed shut when disconnected for added safety. We use a locking ring mechanism protecting against accidental disconnection during a dive!
BOV Quick Disconnect kit with non-locking connector system
Our kit includes one non-locking quick disconnect AH-202 connector and we marry that with our LH-A regulator side connection 9/16 fitting.. You MUST select from our drop down box below which fitting you wish with your kit! The standard fitting is the LH-A with our Newest fitting our Deluxe LH-A!! Check out this one for the small upgrade costs
Detailed Information
Quick disconnect for BOV or second stage regulator
Female 9/16 thread on our LH-A connector NOTE: The nipple to screw on the BOV or second stage
Male 9/16 thread on non-locking AH-202 Quick Disconnect non-locking slider to screw on standard low pressure regulator hoses
Our AH-202 quick disconnet non-locking slider is sealed shut when disconnected for added safety!
This is for the rebreather diver who prefers not to use a locking ring quick disconnect connector!
2 x 9/16-18 (adapters) Male lnlets : These are located at the top in the picture and they have the red caps on them! These are screw into the block and may be removed to use 3/8-24 female ports
1 x 3/8-24 Female outlet
Made from a solid brass block and then electro-plated for a protective finish!
knob is made out of high quality aluminum and is anodized black! Also ribbed to work with or without gloves on easy
Inlet adapters can be removed to expose 3/8-24 female ports
Light weight design as this little block come in at: 534g / 1.17 Pounds
This block allows a diver to change between two separate air tanks without having to remove Their full face mask and the knob can turns a full 180 degrees
This is set up for a right side application
This part is NITROX READY right out of the packaging!
2 x 9/16-18 (adapters) Male lnlets : These are located at the top in the picture and they have the red caps on them! These are screw into the block and may be removed to use 3/8-24 female ports
1 x 3/8-24 Female outlet
Made from a solid brass block and then electro-plated for a protective finish!
knob is made out of high quality aluminum and is anodized black! Also ribbed to work with or without gloves on easy
Inlet adapters can be removed to expose 3/8-24 female ports
Light weight design as this little block comes in at: 534g / 1.17 Pounds
This block allows a diver to change between two separate air tanks without having to remove Their full face mask and the knob can turns a full 180 degrees
This is set up for a left side application
This part is NITROX READY right out of the packaging!
Convert any standard regulator hose to a "SeaQuest Style" QD hose
Installs to the second stage end of a regulator hose
Chromed brass construction
Oxygen clean with Viton o-rings
Compatible with:
Oceanic Air XS
Aeris Air Link
SeaQuest Air Source
Apeks Octo Plus
Zeagle Octo Plus
Beauchat Venturi
US Divers Air Mic
LH-A
Can be used with a Regulator to disconnect
Look under Female Adapters to find this fitting
LH-B
Converts a Oceanic Air XS,Aeris Air Link,SeaQuest Air Source,Apeks Octo Plus,Zeagle Octo Plus, Beauchat Venturi and US Divers Air Mic to a standard BC connection.
Look under Female Adapters to find this fitting
MA-02
Can be used to convert a BC inflator hose to Seaquest, Oceanic Air XS,Aeris Air Link,SeaQuest Air Source,Apeks Octo Plus,Zeagle Octo Plus, Beauchat Venturi and US Divers Air Mic to a standard BC connection.
Look under Male Adapters to find this fitting
Rebreather Info
Quick Disconnect - Female to 9/16 Male thread.
LP hose side of BOV QD: Attaches to Low Pressure regulator hose and is sealed when not plugged in!
Connector has locking ring for added safety
Add it to your bailout system or deco bottle for easy switching
Goes inline between the regulator and your low pressure hose!
Helps prevent air loss through second stages
This model works well in colder water conditions where heavier gloves are needed. When using 3 mil or thicker this shut off valve is an excellent choice
Overall length is 2 7/8"
This part is NITROX READY right out of the packaging!
This allows you many options when building your kits
Can be used with a Regulator to disconnect
This fitting works with ANY STANDARD Bc connection
Use for a quick connection on the hose end
Multi use connection
Size: Female thread size 9/16-18
Rebreather Info
Use our LHA Quick Disconnect male to work with a 9/16"-18 Female fitting such as our AB-04 or AH-202 fittings located in the rebreather hardware section!
Connections for BOVs or OC 2nd stage regulators
This connector is NOT compatible with CEJN fittings
Our one way check valve uses a 1lb check valve inside our adapter which allows the gas only to flow one way which we have marked! This would allow a diver to switch underwater with no water inside your hoses!!
The Bc connection end is a Seaquest type!
The other end uses a 9/16-18 male end to allow you to connect to low pressure hoses!
The check valve allows the air "gas" to flow only one way! The check valve is marked with the direction of your gas flow to give you a quick check before testing your system out!
Solid electro plated finish makes this adapter very durable in salt or fresh water use and for long life!
Our check valve is an awesome adapter for off board gas connections for rebreathers!
Has male 9/16 threads to connect your low pressure hoses too
Uses a SeaQuest type female fitting with a knurled end to hold your LH-A adapters use the Seaquest type fitting or Seaquest fittings in place
NOTE: If you have the locking ring model::::Uses a rotating ring to hold the small adapter locked in until you move the ring into the release depression on the ring which allows you to release the two from being connected!
NOTE: You are purchasing a kit which comes with both fitting!
This is also used on the Kiss rebreather upgrade
More Details:
Female QD has lock built into sleeve. NOTE: If you are using the locking ring model!
Once connected, rotate the sleeve counter-clockwise 90 degrees to engage the lock.
Solid Brass Construction Made with 02 compatible materials
Female QD: 9/16"-18 Male (Connects to a standard regulator hose) Male QD: 9/16"-18 Female (Connects to a standard regulator fitting or all OmniSwivel's)
NOTE: Can be used with OTS Guardian Full Face Masks and OTS Stealth FFMs
This is one of our newer long 2nd stage regulator shut offs
Thread size is a 9/16F to 9/16M
On/Off Swift Adapter For ST Regulator Hose
Stops free flows
Great for back up regulators
Goes inline between the regulator and your low pressure hose!
Helps prevent air loss through second stages
This model works well in colder water conditions where heavier gloves are needed. When using 3 mil or thicker this shut off valve is an excellent choice
Overall length is 2 7/8"
This part is NITROX READY right out of the packaging!
Piranha's Price: $14.99
Rebreather Hardware and Hoses
The small fittings that keep a rebreather breathing. We stock one way check valves with 3/8-24 male ends, double and triple under-the-counterlung D-rings, female quick disconnects, 1/4 NPT male to 3/8-24 female fittings in stainless and brass, and Tribolube 71 oxygen-service lubricant in 5 gram tubes.
