Go Rebreather Sensor "3 Pack of Cells" with free U.S. Shipping
This sensor is made for the Go Rebreathers!

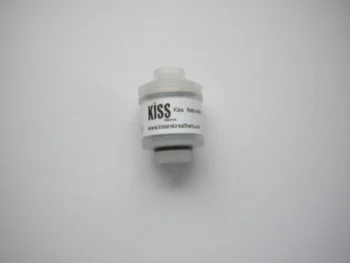

Sensor is a K-22D Oxygen Sensor
One of the improvements of these cells is the temperature compensation specification. At present all different manufacturers sensors will react differently to temperature. Inferior temperature compensation circuits will cause other cells to react differently and be voted out! Therefore it is our recommendation NOT to MIX different manufacturers sensors!
You will also SAVE $$$ when purchasing our 3 pack of sensor cells!
Specs:
OEM model number NaNM01 Oxygen Sensor Output 9 - 13 mV
Output connector MOLEX Input
Threaded M16 x 1mm Input
O ring Yes
Range 0 - 100%
Oxygen Pressure range 600 to 2500 mbar
Linearity error 0.1 to 1.0 bar < 3% relative 0.1 to 2.5 bar < 5% relative
Warm up time < 30 minutes after sensor installed Zero offset voltage
< 0.5% oxygen reading in 100% nitrogen @ 25?C after 36 seconds Cross interference
<0.5% vol. O2 response to 5% CO2 balance N2
Response time < 5 s for 90% of final value
Operating humidity 0 - 99% R.H. (non-condensing). Influence of humidity - 0.03% relative per % R.H. at 25 ?C
Influence of mechanical shock < 1% after fall from 1m Operating temperature range 0 - 50 ?C
Storage temperature -20 to +50 ?C
Recommended storage temperature +5 to +15 ?C
Temperature compensation Integrated NTC network Temperature compensation error 0 ?C to 50 ?C, 5% relative error
Nominal sensor life 500,000 % oxygen hours Long term output drift < 1% vol oxygen per month, typically < -15% over sensor lifetime.
Shelf life 24 months
Warranty period 12 months from date of sales invoice
